*How to connect your Tru-Test XRP2i Race/Panel Scanner to the Agrinous Android app using Agrinous Hub.

Connect a Tru-Test XRP2i Race Scanner to Agrinous on Android

Connect a Tru-Test XRP2i Race Scanner to Agrinous on Android

This guide explains how to connect your Tru-Test XRP2i Race Scanner to the Agrinous Android app using Agrinous Hub.

Before You Start

Before connecting your scanner, ensure that:

  • The XRP2i Race Scanner is fully charged or connected to a power source.
  • The EID reader panel is securely connected to the XRP2i unit.
  • Bluetooth is enabled on your Android phone or tablet.
The latest version of the Agrinous app is installed.

The latest version of the Agrinous Hub is stalled.
Step 1: Configure the XRP2i Scanner

On the XRP2i scanner, verify the following settings. If you need further assistance, try the Datamars website

Setting Value
Bluetooth Auto
Advanced Bluetooth Default
Step 2: Install and Open Agrinous Hub
  1. Open the Google Play Store.
  2. Download and install Agrinous Hub.
  3. Ensure you are installing the latest available version (currently v9.2.5 or later).
  4. Open Agrinous Hub.

Note: Google Play Store link to Agrinous Hub here.

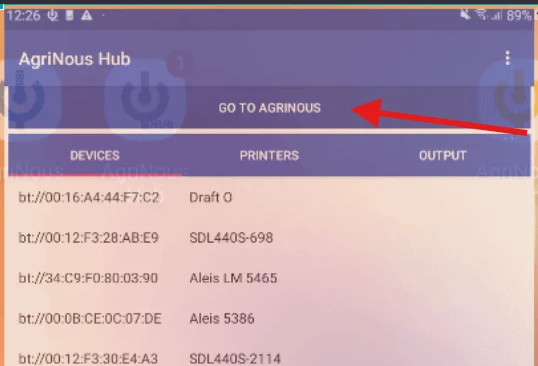

Leave Agrinous Hub running in the background while using the Agrinous app you can also use the "go to Agrinous" link in the hub

Step 3 – Connecting the Scanner in Agrinous
Click here to watch a video on how to navigate to the scanning screen in Agrinous
or alternatively follow these steps
Navigate to the sale you wish to scan to from the Agrinous Dashboard.

Navigate to the pens tab and select the lot you wish to scan to and select scan.


Or alternatively, if scanning to a consignment, select the consignment and select the consignment you wish to scan to and select Scan.
Select real-time from the 4 options at the top of the page
A drop-down box will now appear; select the scanner from the drop-down, most likely named XRP2i  followed by 4 numbers.
Select the device.

The Agrinous scan screen will now display.
Showing "Disconnect" in blue, this indicates that the scanner is connected.
The blue light on the scanner will also now be illuminated in blue.


Once connected:
The Bluetooth indicator on the panel scanner will illuminate.


Step 5 – Start Scanning
Simply begin scanning EIDs,
As each tag is read, you will see it drop into the scanning screen, recording the EID against the selected lot in real time. Once all tags are scanned at the bottom of the screen, you can select
Add to sale lot & close OR Add to sale lot and next (if you wish to scan the next pen)



Note: After selecting the scanner, the XRP2i display will show "Screen Locked". This is normal while Agrinous Hub configures the scanner's tag format and establishes the Bluetooth connection.

When the connection is complete, the Bluetooth indicator on the XRP2i will illuminate blue, confirming the scanner is connected and ready to use.

Expected Result

The XRP2i is connected to Agrinous through Agrinous Hub, with a solid blue Bluetooth indicator on the scanner. As each EID tag is scanned, it appears immediately in the scan list and can be saved to the selected consignment or sale lot.
